ALARMCENTRAL

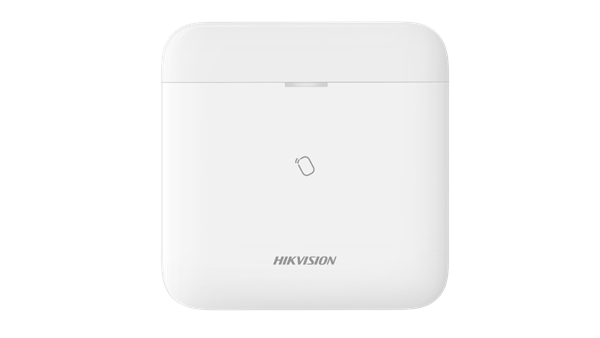

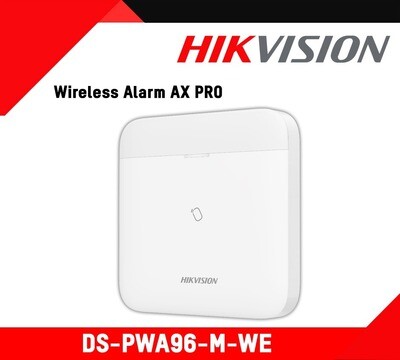

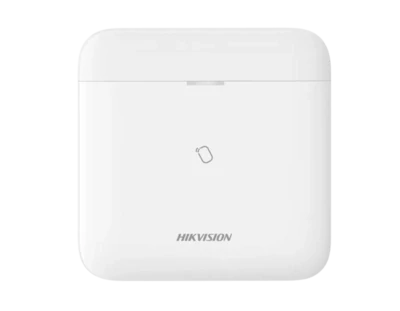

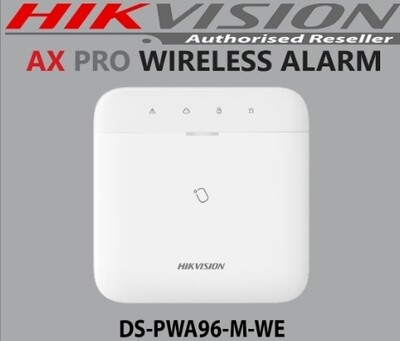

DS-PWA96-M-WE AX Pro Central

• TCP/IP, Wi-Fi, and 3/4G network
• New generation wireless protocol: Tri-X/Cam-X
• Long RF transmission distance
• Two-way communication with AES-128 encryption
• Connects up to 96 wireless zones/outputs (including 48 PIRCAMs), 48 wireless keyfobs, 4 repeaters, 6 sounders(3 internal+3 external), 8 tag readers and keypads
• Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users
• Voice prompt
• Configuration via Web client, mobile client, and Convergence Cloud
• Hik-Connect and Hik-ProConnect configuration depends on the user access level
• Pushes alarm notification via messages or phone calls
• Views live videos from Hik-Connect
• Alarm video clips via emails and APP
• Supports LED indicator to indicates system status
• 4520 mAh lithium backup battery
• SIA-DC09 protocol, and supports both Contact ID and SIA data format
• Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication

Software features

• Diagnostics via the APP or WebSupported
• Installer1
• Installer APP for programmingSupported
• Onboard video clips4
• Web server for maintenance (offline configuration)Supported
• Wi-Fi standardSupported
• Arm modesAway/Stay
• Firmware upgradeAPP/Web Portal
• Admin1
• Wired networkSupported
• Programming toolsHik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
• Forced arming with open zonesSupported
• Memory log stored5000
• User46
• User APP for operatingSupported
• Voice promptSupported
• Area32
• Automatic arm/disarm timersSupported

Hardware features

• RS232 outputSupported
• SIM slotDual
• 3/4G on boardSupported
• Tag reader built inSupported
• Loudspeaker built inSupported

Electrical characteristics

• Battery typeBuilt in on board Battery Li
• Power supplyBuilt in power supply
• Operation temperature-10 °C to +55 °C (The battery can not be charged at temperature lower than 10°C, please make sure the adapter is connected)
• Battery life spanUp to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)

Wireless transmission

• RF frequency868 Mhz
• RF methodSupport
• Wireless securityFrequency Hoping 128 AES Encryption

Display

• LEDs statusArm/Disarm, Alarm, Tamper, Fault, Cloud, Power

General

• Dimension(WxHxD)170.0 mm (6.7") × 170.0 (6.7") mm × 38.6 mm (1.5")
• Shell materialPlastic
• ColorWhite
• Weight557.5 g (19.7 oz)

Device management

• Tag48
• PIR camSupported
• Zones96 (up to 48 PIRCAMs)
• Keypad8 (including tag reader)
• Wireless sounder6 (3 internal+3 external)
• Wireless repeater4
• Keyfob48
• Multi Transmitter6

Report method

• ARC protocolSIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI (SDK)Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)Supports video verification and remote control
