Vindue-Door-sensor
Produkt detaljer
UPC: 6941264054061
Mærke: HikVision

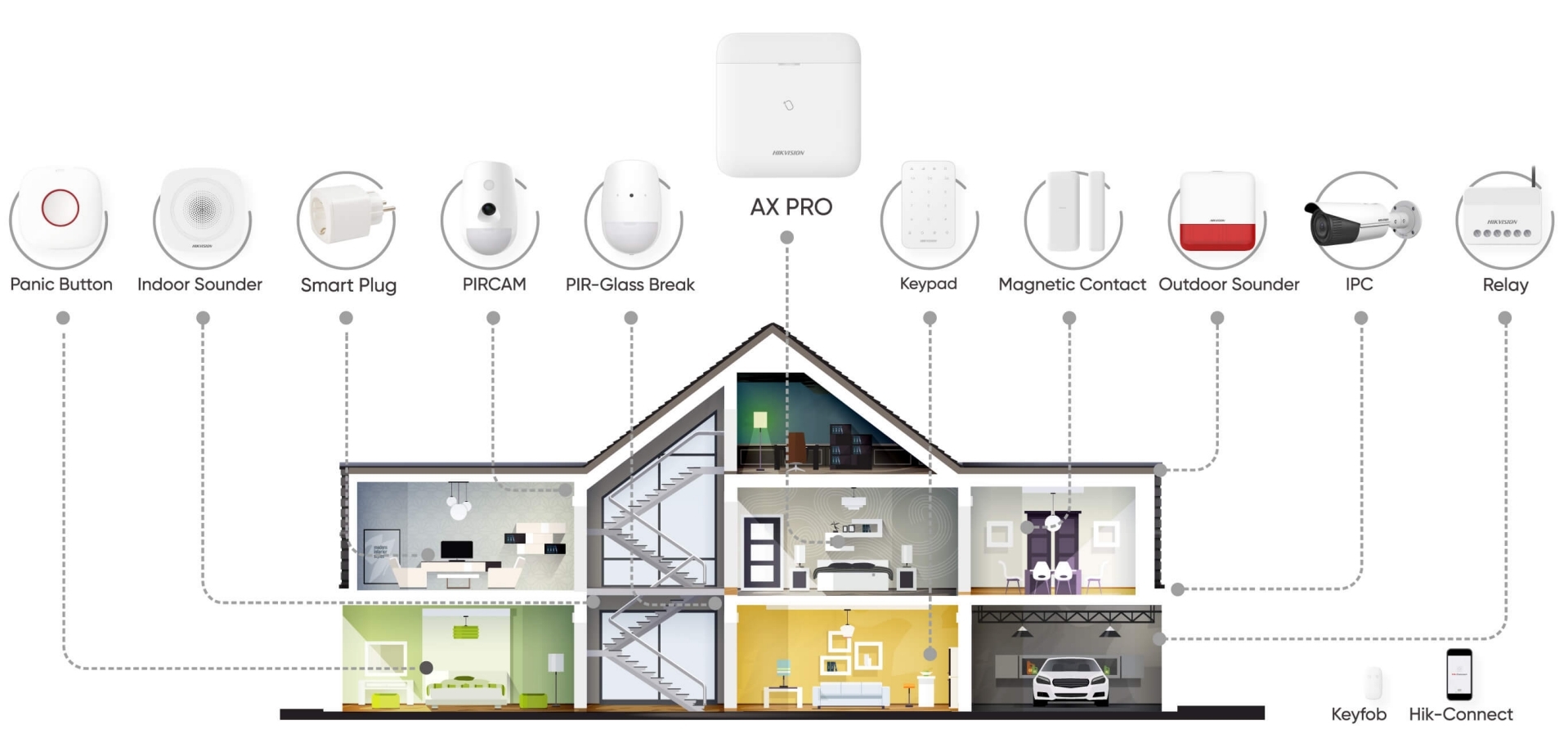

En del af HIKSON40 familien - Professionel Alarm

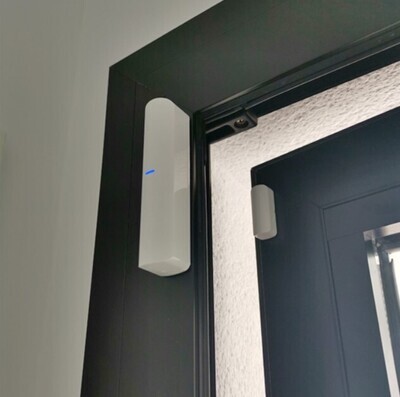

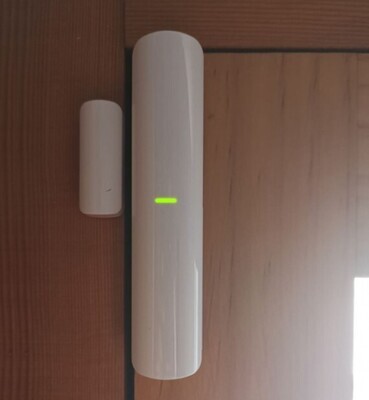

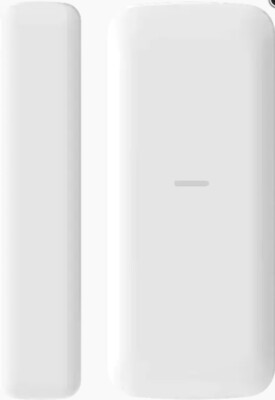

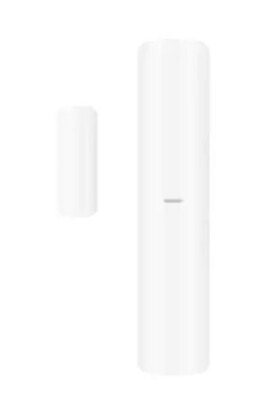

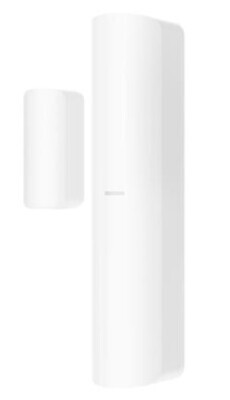

DS-PDMC-EG2-WE er en trådløs åbningsdetektor, der giver besked om første tegn på rumindtrængen hvis man åbner en dør eller et vindue.
Den kan monteres på alle typer døre inklusive metalbase.
Elegant magnetføler til vinduer og døre
- Super fed og diskret lille magnetkontakt til HIKSON40 fra AX PRO
- Perfekt til døre og vinduer
- "Slim" design gør den meget æstetisk, kun 10 mm tyk
- 3 års batterilevetid ved 20 daglige aktiveringer
Certificeringer:
- EN 50131-1:2006+A1:2009+A2:2017+A3:2020
- EN 50131-2-6:2008
- EN 50131-5-3:2017
- SSF 1014
- Security Grade(SG)2
- Environmental Class(EC) II
- Sikringsniveau 40 (op til)
- Larmklass R, Miljöklass II
| DS-PDMCS-EG2-WE | |
| Detection Performance | |
| Detection Method | Opening Contact |
| Detection Gap | 52mm Max |
| Feature | |
| Digital Processing | Support |
| Tamper Protection | Front,Rear |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
| Interface | |
| Power Switch | Power Up Enrolling |
| LED Indicator | Blue (Alarm) |
| Transmission | |
| Transmission Technology | Tri-X Wireless |
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 868MHz |
| Transmission Security | AES-128 Encryption |
| Transmission Range(Free Space) | 1.2Km |
| Frequency Hopping | Support |
| Enrolling Method | Power up,Remote ID,QR Code |
| Electrical Characteristics | |
| Standard Battery Life | 3 years in work status (being triggered 20 times per day) |
| Power Supply | Battery Powered |
| Battery Type | CR2450 x 1 |
| Typical Voltage | 3V |
| General | |
| Operation Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| Dimension(WxHxD) | Detektor 29mm × 69mm × 10mm / magnet 14mm × 69mm × 10mm |
| Weight | 38g |
| Application Scenario | Indoor |
